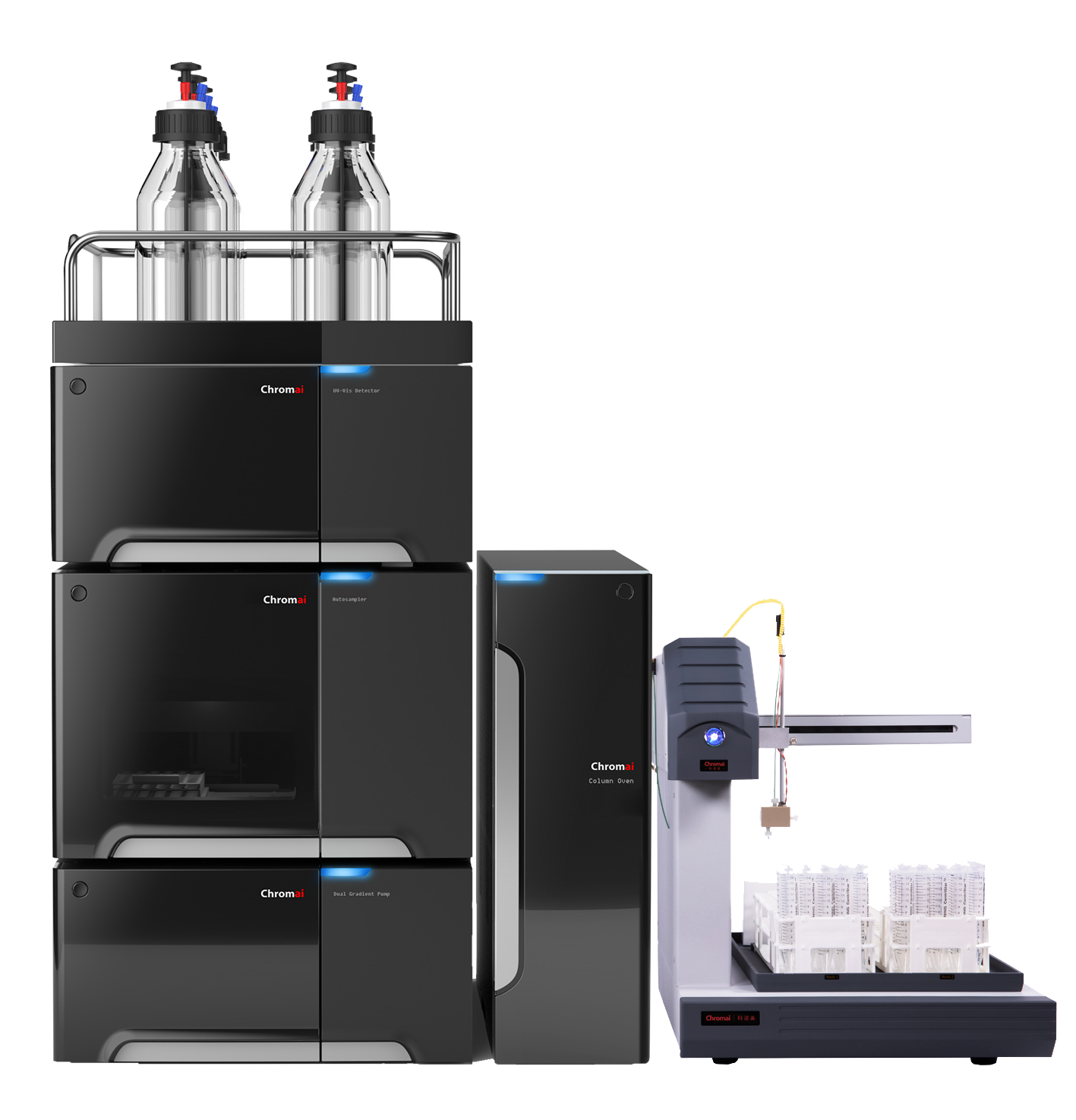

Gel Permeation Chromatography Cleanup System
Introduction: The Gel Permeation Chromatography Cleanup System is an ideal pre-treatment solution after sample extraction, automatically performing labor-intensive and time-consuming sample cleanup tasks. Gel Permeation Chromatography (GPC) removes
Features&Applications
01 High-precision series dual-plunger solvent delivery pump with excellent flow rate accuracy, ensuring sample cleanup reproducibility and recovery 02 Configurable with isocratic pump or binary pump, maximum flow rate up to 150 mL/min 03 Standard autosampler with maximum injection volume of 5 mL, accommodating 2 × 15 5 mL sample vials 04 Optional manual injection mode with flexible injection volume selection 05 Fraction collector standard with 2 collection racks, supporting 16 mm tubes (2 × 60 positions), 30 mm tubes (2 × 21 positions), and 13 mm tubes (2 × 90 positions) 06 Fraction collector supports time, threshold, slope, and mixed mode automatic collection or manual collection 07 Multiple specifications of GPC cleanup columns available, compatible with glass GPC cleanup columns and stainless steel rapid GPC cleanup columns 08 Modular design, controlled by intelligent and user-friendly Eyoulab Chromatography Workstation software, suitable for large-scale GPC sample cleanup work with diverse samples in the laboratory 09 Applicable for sample cleanup in pesticide/veterinary drug residue, additive, and nutrient component testing projects in food, grain, oil, and agricultural products; sample cleanup for organic pollutant detection in environmental soil, solid waste, and other samples
