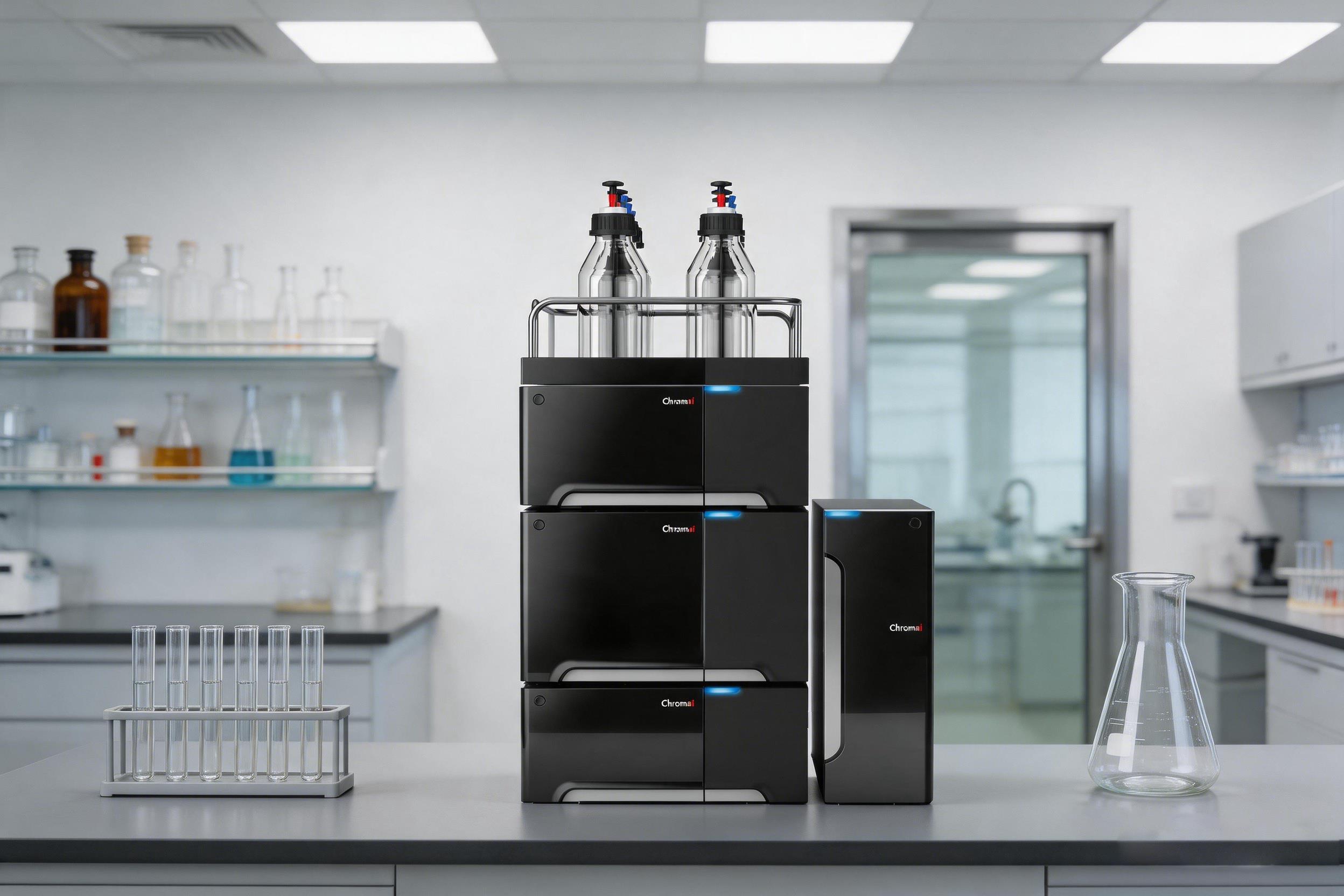

Leaps Pro Ultra-High Performance Liquid Chromatography System

Request Quote Download Materials

Autosampler：A60

Column Oven：C10\C12

Diode Array Detector：D20\D22

Liquid Delivery Pump:P42

High-capacity column oven that can accommodate four 300 mm long columns.
Forced air circulation and optimized cooling air duct system ensure a more uniform temperature field.
Semiconductor temperature control with a wide range of 4 °C to 85 °C.
Supports 10-port, 6-port and other valve configurations for dual-column and multi-column switching.

Integrated circular autosampler with a minimum injection volume of 0.1 μL, ideal for micro-volume and trace analysis while ensuring non-destructive injection.
Standard 4×54 sample tray, compatible with 4×96-well plates for high-throughput analysis.
Contact-type high-efficiency integrated cooling system with a temperature range of 4°C ~ 40°C.
Supports sequence-overlapping operation, allowing multiple projects to run consecutively without manual intervention.

Ultra-high pressure resistance up to 10,500 PSI (720 bar), greatly improving analysis efficiency compared to conventional systems.
High stability at low flow rates ensures long-term stable and accurate performance even with small solvent ratios.
Pressure pulsation suppression technology limits fluctuations to < 10 PSI.
Standard post-flush and needle wash solvent degassing system.
Hand-tight zero-dead-volume tubing minimizes extra-column volume.
